AULTEN Store

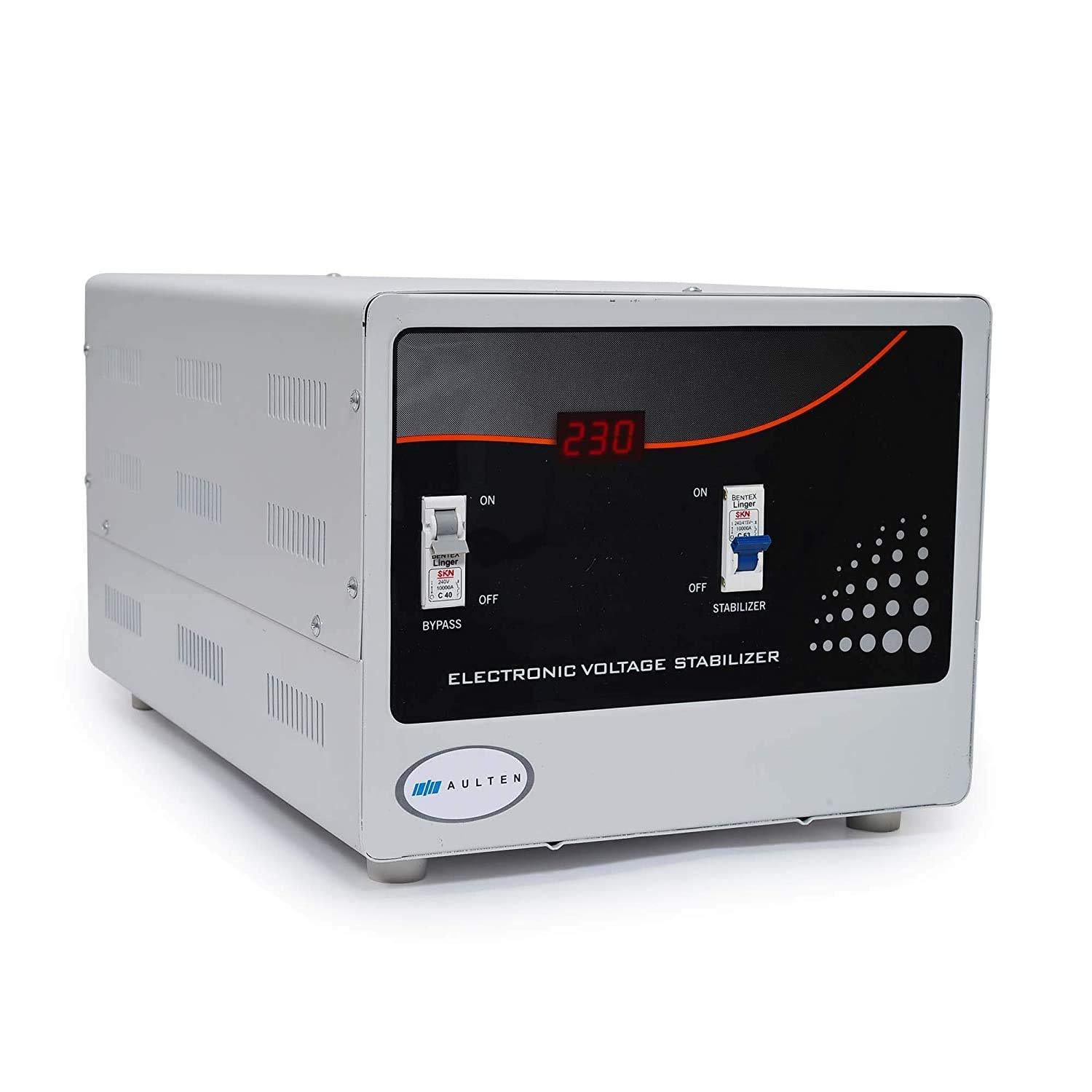

10 KVA 90V - 300V Heavy Duty Voltage Stabilizer For Mainline

SKU: 10KV
Rating5/5 based on 1 reviews

With Changeover MCB/Powers all Home Appliances, 1 Year Replacement Guarantee

  • Full protection design for Over Voltage, Under Voltage, Short Circuit, and Overload to protect your equipment

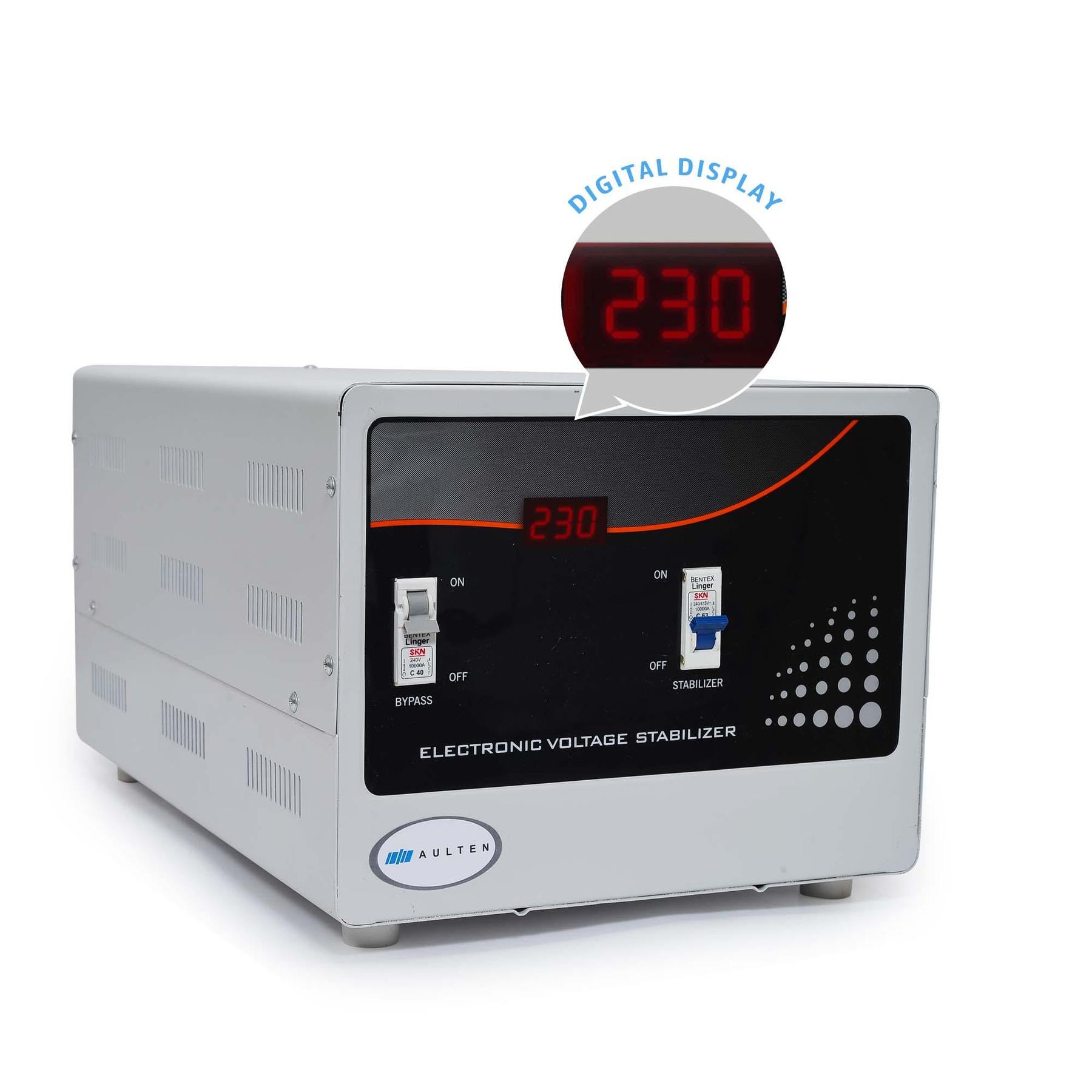

  • Digital LCD display, continuously displays input & output voltage with LED indicators
  • Low & High Cut Off:- Automatically cuts the grid supply during a power surge and fluctuations

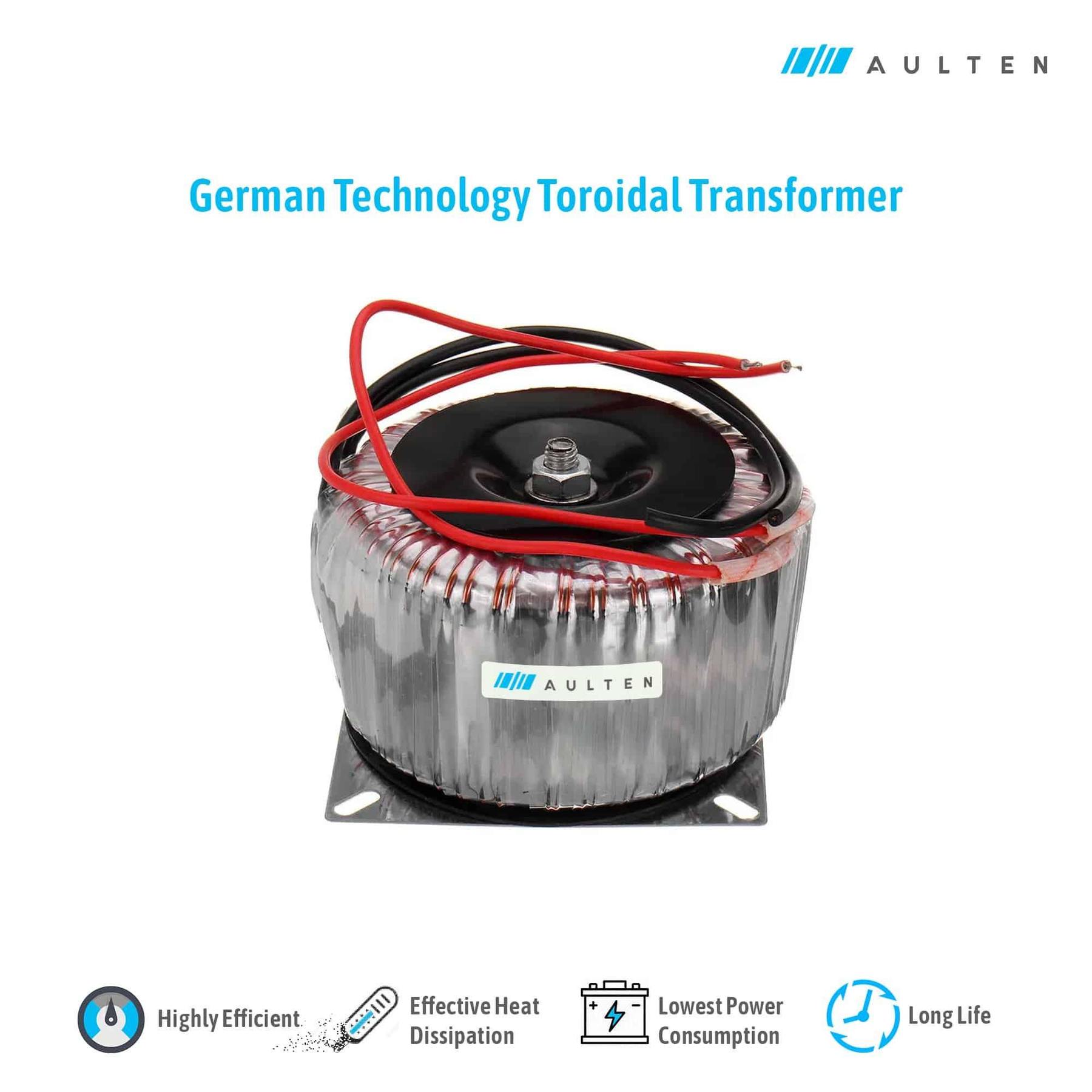

  • Integrated with Zero cross switching technology with High Efficient Toroidal Transformer
  • Complete Protection for all your appliances with inbuilt High Voltage Cut, Low Voltage Cut, Short Circuit, and Overload Protection, enhancing their performance and life cycle, automatically cuts the power supply during huge surges and fluctuations.
  • Multifunctional Digital Display showing Output Voltage (OP), Input Voltage (IP), High Voltage (Hi), Low Voltage (Lo), 5 Second Initial Time Delay Countdown, you can monitor the voltage performance in real-time.

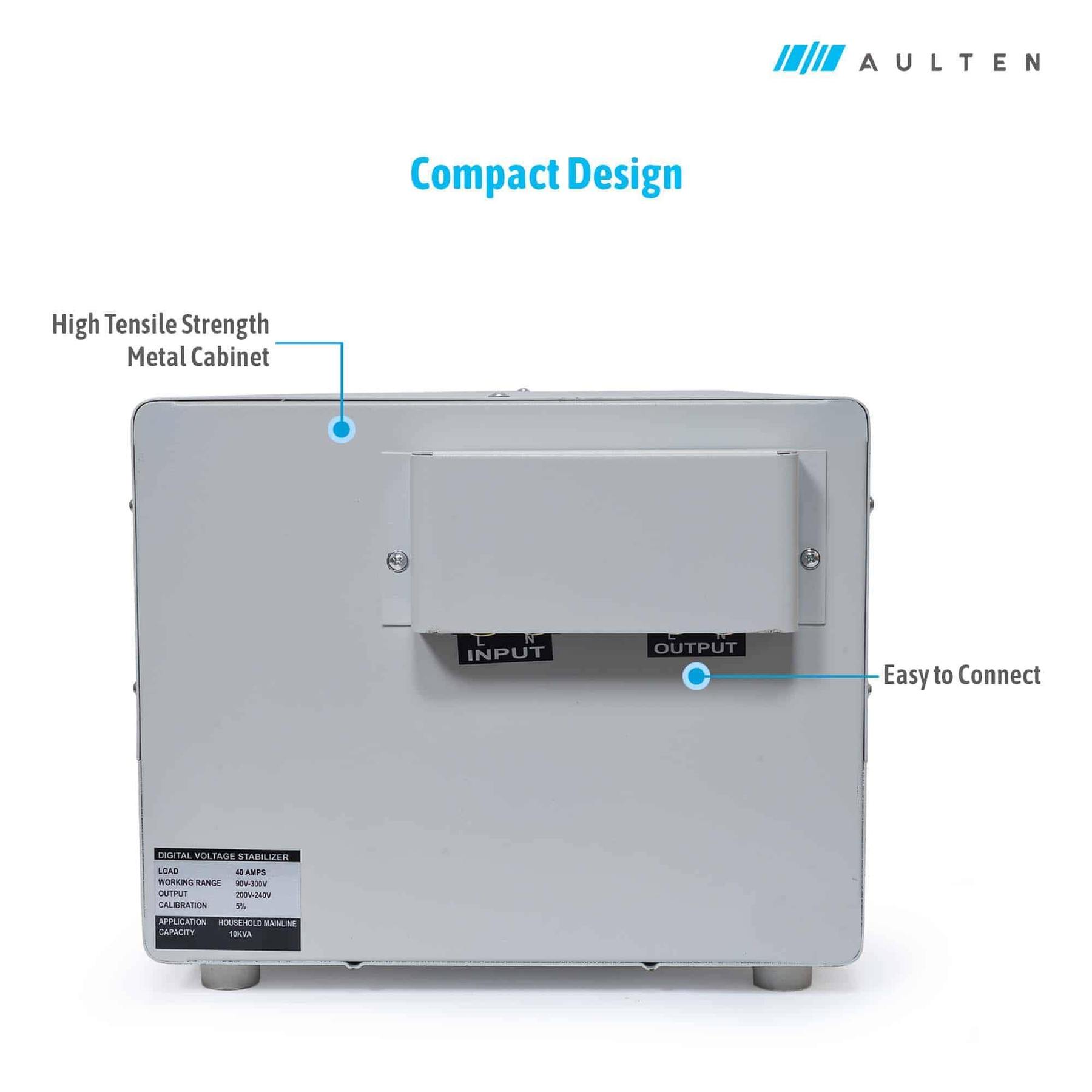

  • Compact Design, a high tensile metal cabinet for the long life cycle of the product, easy to install with just 5 wire connections clearly marked on the stabilizer, 2 wires for input, 2 wires for output, and 1 wire for earthing, no more complications

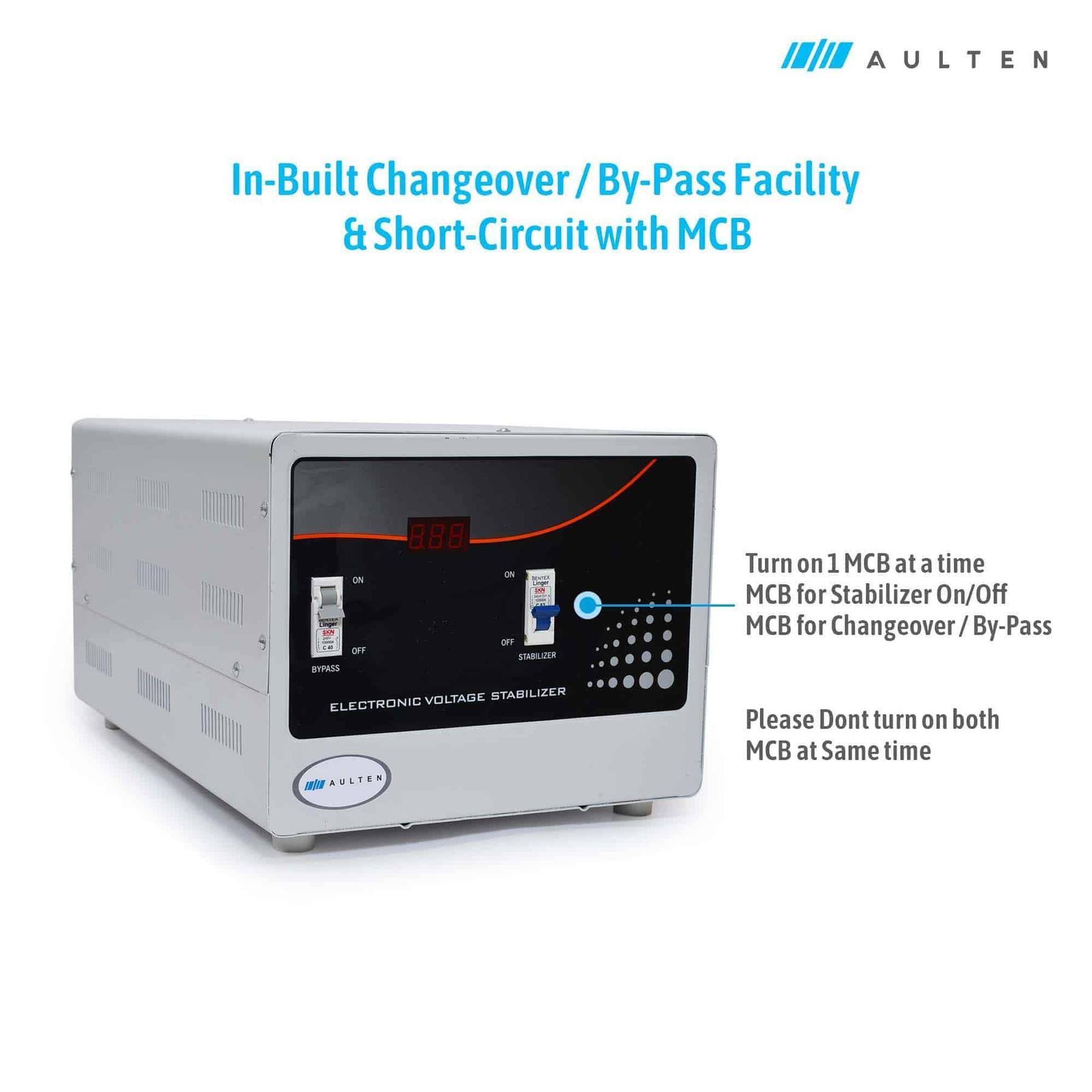

  • Integrated with Zero cross switching technology with Highly Efficient Toroidal Transformer, 2 MCB on the front, 1 for stabilizer on/off (Mains), 2nd for Changeover/Bypass to use the grid power supply in case of any failure or emergency hence saving you the hassle of a power outage
  • 1 Year Replacement Guarantee, we will replace your stabilizer free of cost in case of any problems faced with the stabilizer, you don’t have to go anywhere, the old stabilizer will be picked up from the comfort of your home and a new one will be delivered.
Country of Origin: India

Description

Product details

  • Package Dimensions : 46 x 30 x 24 cm.
  • Item Weight: 36 kg 600 g
  • Manufacturer: Aulten
  • Country of Origin: India
  • One-year replacement guarantee.

Aulten brings to you an exclusive range of energy-efficient and automatic voltage stabilizers that are an ideal fit for all your appliances and their voltage needs.

This voltage stabilizer is designed to take care of all the appliances in your home. After use, you will notice that the fans will start moving faster, lights will be brighter and everything else in between will feel like a new energy in your home! This is recommended to use in adversely affected areas where there are frequent power cuts. It will also help your Inverter/UPS charge the batteries faster so you’re ready quicker, for any unforeseen power outages.

With all these multi-benefits like very fewer voltage fluctuations, suitable for pumps and submersible because it's based on an intelligent system with a digital voltmeter it helps give accurate power voltage reading. And one of the best things about Aluten stabilizers is that they are easy to install.

Technical Specifications

Working Input Range 90V - 300V
Output Voltage Range 200V-240V +/- 5% (190V Lowest & 252V Highest)
Low Voltage Cut Off 90V
High Voltage Cut Off 280V Cut Off (Recovery @ 300V)
Max. Output Current 40 Amps.
Initial Time Delay 5 to 10 seconds
Frequency 50 Hz. +/- 2 Hz.
Overload Protection via MCB (Stabilizer On/Off Mains)
By-Pass / Changeover via MCB (To be turned on 1 MCB at a time)
Operation Fully Automatic
Technology Relay Type
Display Type Digital (Multifunctional)
Display Parameters 'Lo' for Low voltage, 'Hi' for High Voltage
Voltage Display 'IP' for Input, 'OP' for Output
Idle Power Consumption Less than 20 watts*
Recommended MCB Use only 'C' Series MCB at your Distribution Box before connecting the stabilizer

Recommended wire and MCB types to be used with Voltage Stabilizers :

Type of Voltage Stabilizer

Wire Size

MCB Type

10 KVA 90V - 300V Mainline Voltage Stabilizer for Home

16.0 square mm.

MCCB 100A

Reviews

Rating 5/5 based on 1 reviews

Login
Don't have an account?
Sign Up

Santosh Saini
Santosh Saini
20-Sep-2021

Happy with this product

Gone are the days when we used to have those big black boxes, this one is quite simple to hang on the wall. Got it installed near main electrical box of my home and now all appliances in home seems to be working fine, can notice the fan speed has improved. Automatically adjusts required power day and night... Go for it

×
